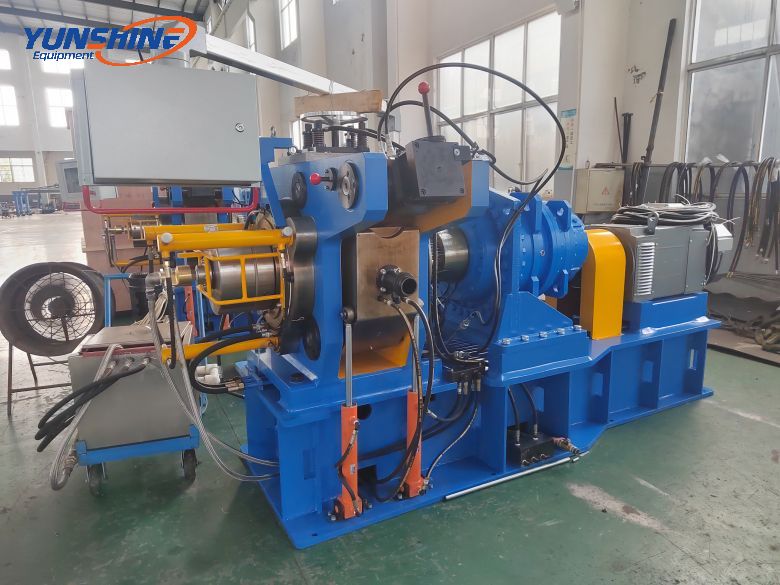

Aluminum Continuous Extrusion Machine
Product Detail
Parameter
Model | 300 | 350 | 400 |
No. | Belong item | Technical data | Technical data | Technical data |
1 | Nominal Diameter of Extrusion Wheel | 300mm | 350mm | 400mm |
2 | Power of Main Motor | 90kW | 180kW | 250kW |
3 | Speed Range | 22.5m/rpm | 16m/rpm | 4-12.5m/rpm |
4 | Material Type | Pure Aluminum, Aluminum Alloy | Pure Aluminum, Aluminum Alloy | Pure Aluminum, Aluminum Alloy |
5 | Rod Diameter | F9.5/12mm | F15mm | Ø20mm |
6 | Sectional Area Range of Extruded Products | 5-150mm2 | 10-600mm2 | 200-1800mm2 |
7 | Maximum Width of Extruded Products | Width of Flat wire, flat tube MAX 30mm Diameter of round rod and tube MAX 20mm | Width of Flat wire, flat tube MAX 60mm Diameter of round rod and tube MAX 30mm | Width of Flat wire, flat tube MAX 170mm Diameter of round rod and tube MAX 80mm |
8 | Average Productivity | 230kg/h | 450kg/h | 500kg/h |
9 | Overflow Rate | 0 | 0 | 1-3% |
Related products
-
Upward continuous casting units for Oxygen-free rod Production (following uses
the abbreviation: the unit)is for the production of light length of the oxygen-free
copper rods, large length of bright oxygen-free copper tube and large length of
bright oxygen-free copper slab.
-
Upward continuous casting units for Oxygen-free rod Production (following uses the abbreviation: the unit)is for the production of light length of the oxygen-free copper rods, large length of bright oxygen-free copper tube and large length of bright oxygen-free copper slab.
-
The unit melts electrolytic copper into liquid through an industrial frequency induction furnace, isolates it from the air by covering the surface with charcoal or injecting coal gas (to prevent oxidation of the copper liquid), and controls the temperature of the copper liquid at 1150℃+10℃ through a holding furnace. The continuous casting machine quickly forms copper bars in the bar casting device to continuously produce copper bars, which are finally loaded into discs through auxiliary equipment such as a single-head bar bending machine.
-
-

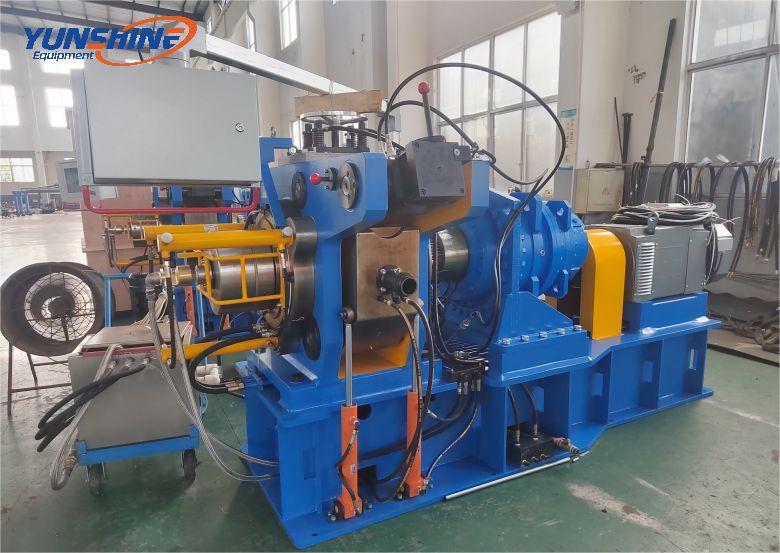

Continuous extrusion machine adopts advanced technology in the world, continuously feeds the raw material like rod of certain specification into a revolving wheel with groove in its periphery. The rod is rubbed and extruded in the groove, generating sufficient temperature by enormous force of friction and extrusion and getting state of recrystallization, then to be extruded and formed in one time through cavity and the special die, which could promptly produce various copper and aluminum profile and aluminum tube.
-
Continuous extrusion machine adopts advanced technology in the world, continuously feeds the raw material like rod of certain specification into a revolving wheel with groove in its periphery. The rod is rubbed and extruded in the groove, generating sufficient temperature by enormous force of friction and extrusion and getting state of recrystallization, then to be extruded and formed in one time through cavity and the special die, which could promptly produce various copper and aluminum profile and aluminum tube.
-

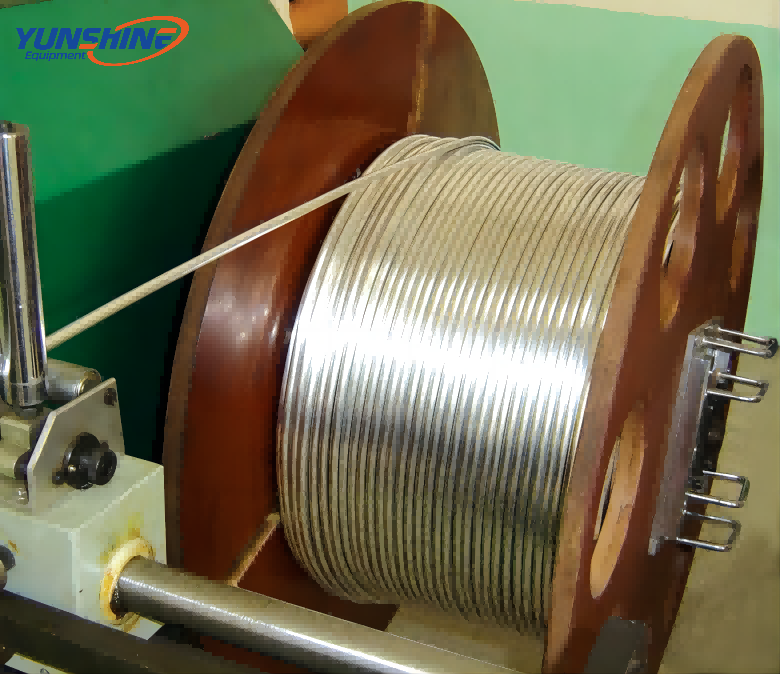

The Conklad Extrusion Machine uses the tangential continuous cladding technique, which will continuously clad the aluminum on the treated steel wire surface, then use bi-metal synchro deforming technics to draw the wire to the size expected. The ACS wrie manufactured under this technique will meet the IEC Standard and ASTM Standard.
-
