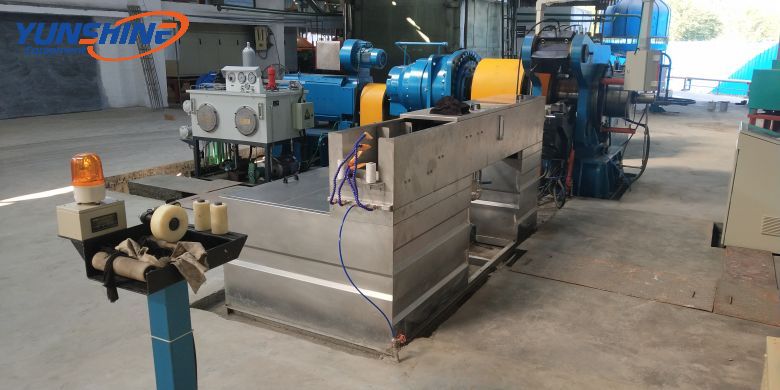

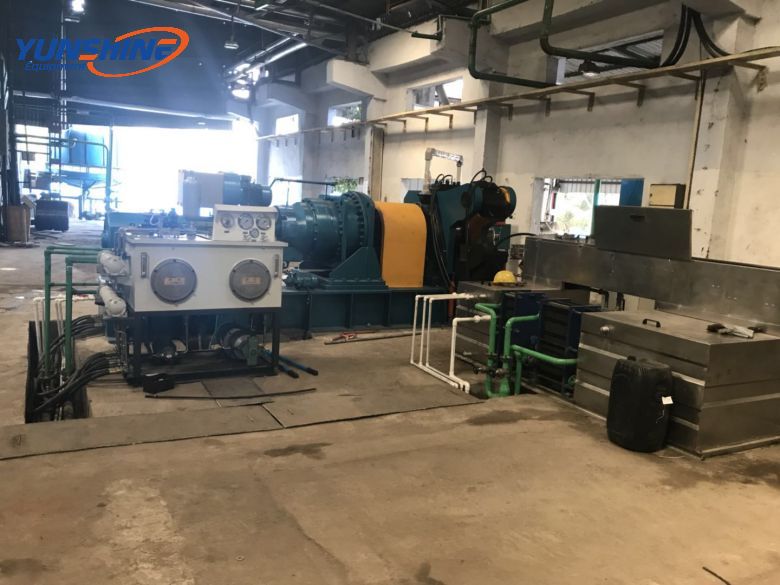

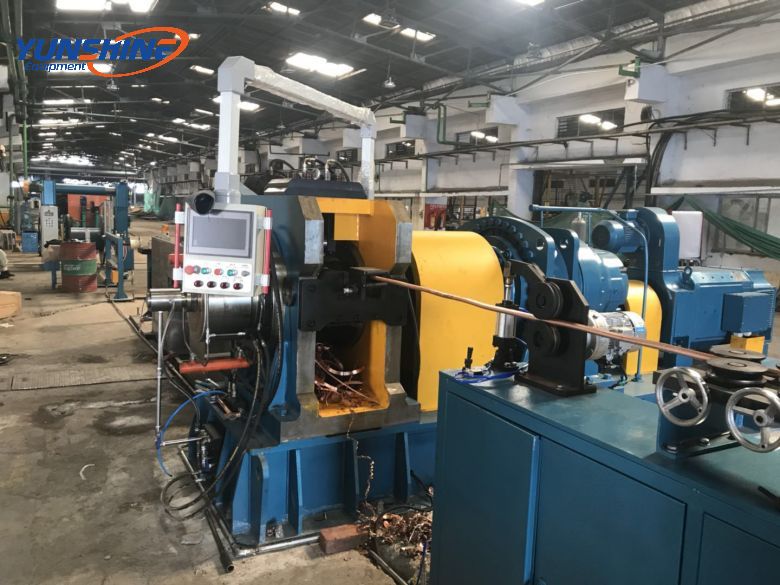

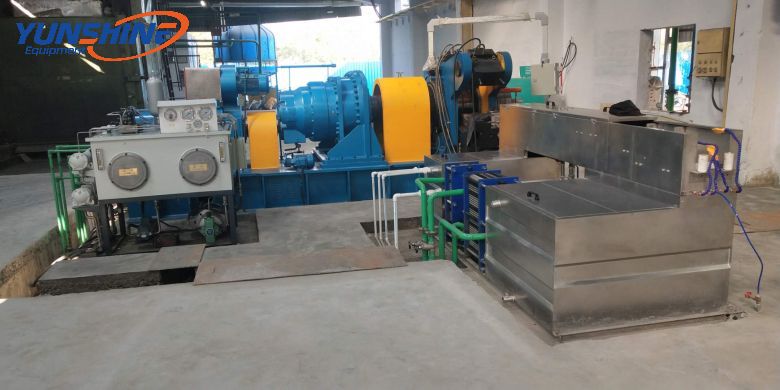

Copper Continuous Extrusion Machine
Product Detail
Parameter
Model | 300 | 350 | 400 |
No. | Belong item | Technical data | Belong item | Technical data | Belong item | Technical data |
1 | Nominal Diameter of Extrusion Wheel | 300mm | Nominal Diameter of Extrusion Wheel | 350mm | Nominal Diameter of Extrusion Wheel | 400mm |
2 | Power of Main Motor | 90kW | Power of Main Motor | 180kW | Power of Main Motor | 280kW |
3 | Speed Range | 4-12.5rpm | Speed Range | 4-8rpm | Speed Range | 4-8rpm |
4 | Overflow Rate | 1-3% | Overflow Rate | 3-5% | Overflow Rate | 3-5% |
5 | Installed Capacity | 115kw | Installed Capacity | 210kw | Installed Capacity | 310kW |
6 | Diameter of Bar | 12.5mm | Diameter of Bar | 16 or 17mm | Diameter of Bar | Φ20mm |
7 | Sectional Area Range of Extruded Products | 5-300mm2 | Sectional Area Range of Extruded Products | 80-1000mm2 | Sectional Area Range of Extruded Products | 100-1600mm2 |
8 | Maximum diameter | 30mm | Maximum diameter | 45mm(above 25mm need extra online cutting machine) | Width-thickness ratio | Max 15:1 |
9 | Maximum Width of Extruded Products | 50mm | Maximum Width of Extruded Products | 100mm | Maximum Width of Extruded Products | Copper Busbar:160mm and Copper Bar Diameter:70mm(need extra online cutting machine) |
10 | Average Productivity | 450kg/h | Average Productivity | 750-800kg/h | Average Productivity | 1000-1250kg/h |
11 | Weight of Host Machine | 6.5T | Weight of Host Machine | 8.5T |
|
|

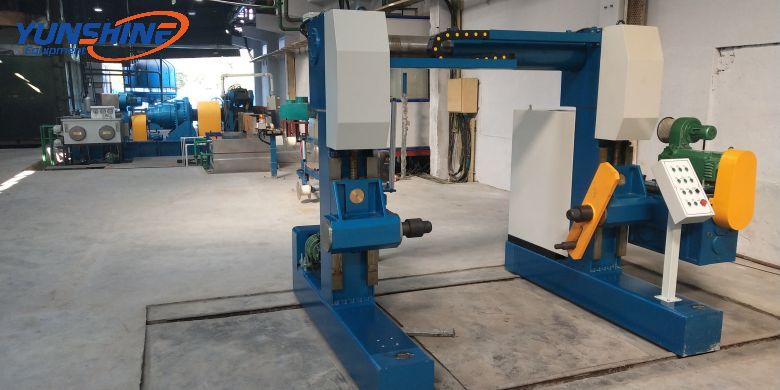

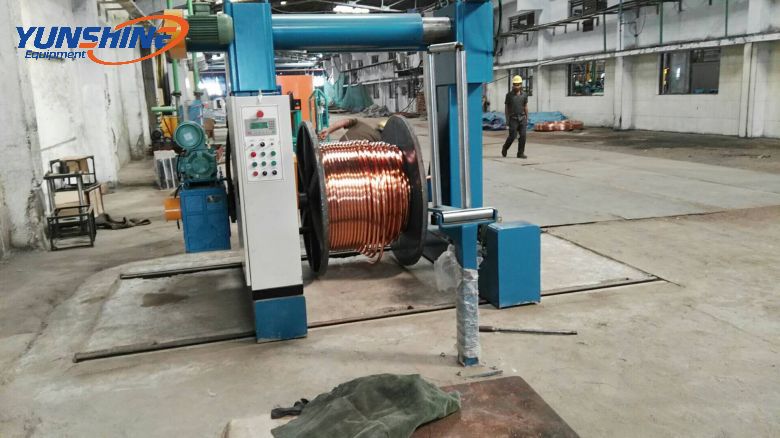

12 | Tray for Take-up Machine | PN800 | Tray for Take-up Machine | PN1250-1600 | Tray for Take-up Machine | PN1600-2000 |
13 | Dimension (L*W*H) | 28*4*4 | Dimension (L*W*H) | 28*4*4 | Dimension (L*W*H) | 28*8*4 |
