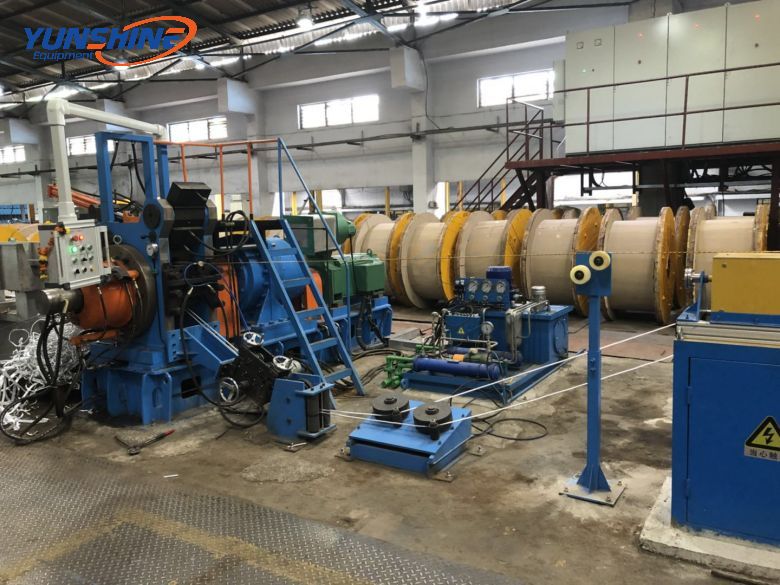

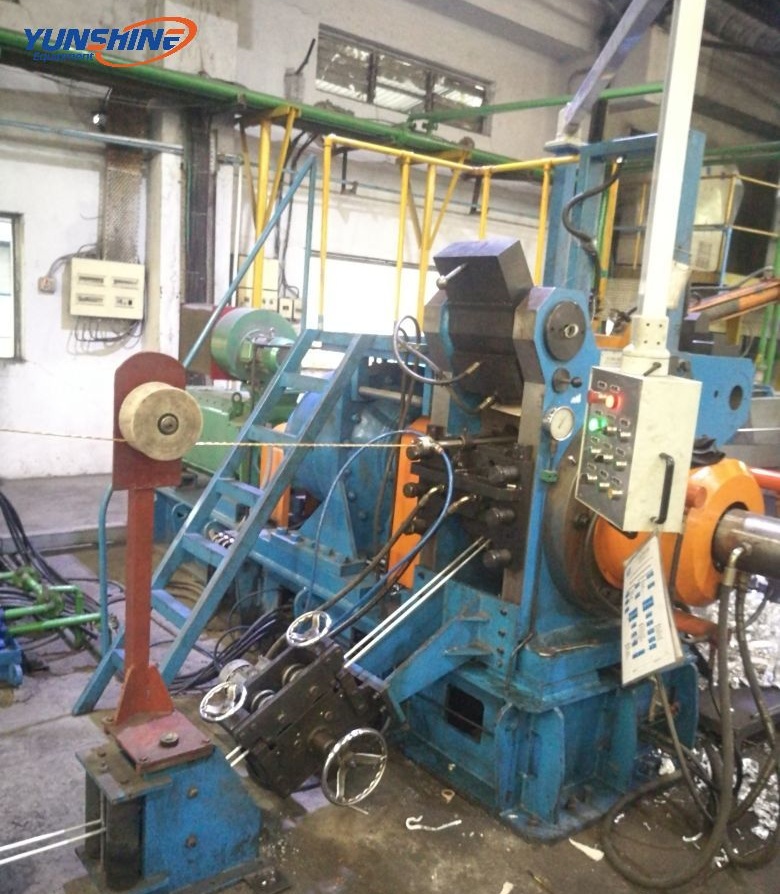

Conklad Extrusion Machine
Product Detail
Parameter
No. | Belong item | Technical data |
1 | Extrusion wheel size | 340 mm |
2 | Main machine max. rotary speed | 16 rpm |
3 | Power supply | 415V |
4 | Main motor power | 200 kW/1500rpm |
5 | Steel wire diameter | 3~6.5 mm |
6 | Max. cladding speed | 180 m/min |
7 | Aluminum rod diameter | 9.5mm |
8 | Take-up load | ≤8t |
9 | Center height | 1000mm |
10 | Noise | ≤85db |
11 | Ambient temperature | -5℃~40℃ |
