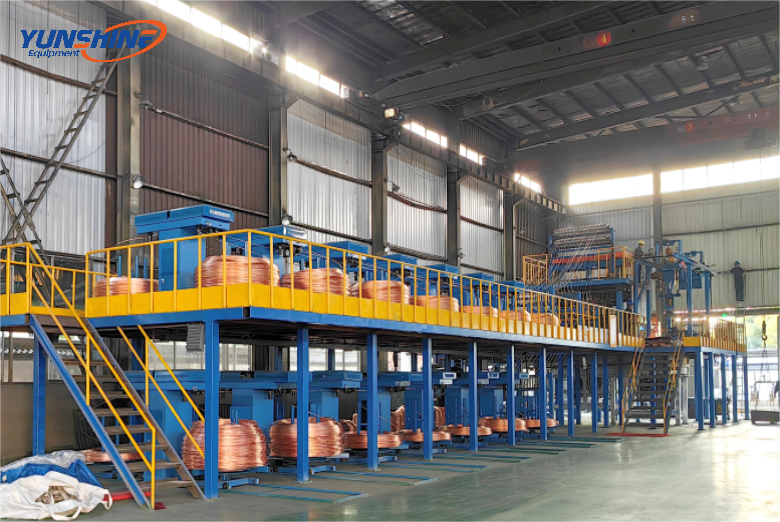

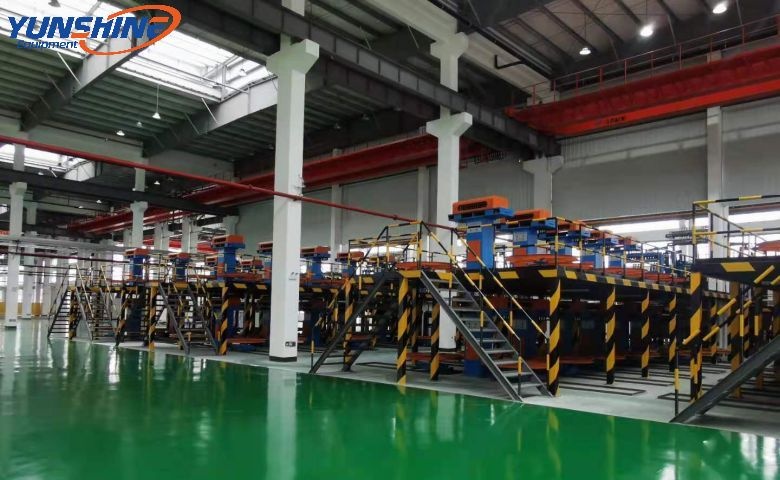

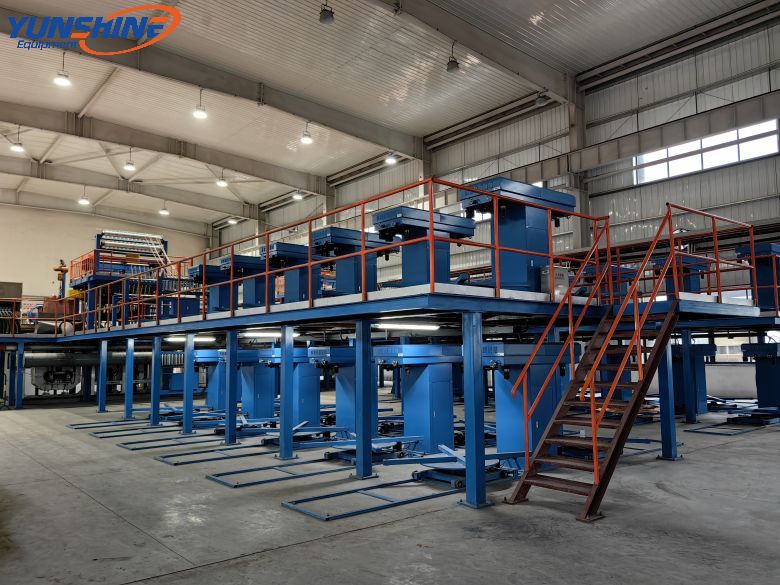

8000T&12000T Upward Continuous Casting System for Oxygen-free Copper Rod
Product Detail
Parameter
No. | Item | Parameter |
1 | Units production capacity | 8,000tons/year |
2 | Number of furnace | two O type melting furnace, one O type holding furnace |
3 | Number of continuous casting rod | 16stands |
4 | Casting rod diameter | φ20 mm-30mm |
5 | Drawing speed for continuous | 0~800mm/min |
6 | Operating time per year | 8000hours |
7 | Level tracking sensitivity | ±2 mm |
8 | Coil take-up specifications | φ700 mm×φ1450 mm |
9 | Meltingspeed | 1100㎏/h |
10 | Power consumption | 330kwh/ton |
No. | Item | Parameter |
1 | Units production capacity | 12,000tons/year |
2 | Number of furnace | One W type melting furnace, one O type holding furnace |
3 | Number of continuous casting rod | 24stands |
4 | Casting rod diameter | φ20 mm-30mm |
5 | Drawing speed for continuous | 0~800mm/min |
6 | Operating time per year | 8000hours |
7 | Level tracking sensitivity | ±2 mm |
8 | Coil take-up specifications | φ700 mm×φ1450 mm |
9 | Meltingspeed | 1600㎏/h |
10 | Power consumption | 320kwh/ton |
Related products
-
Upward continuous casting units for Oxygen-free rod Production (following uses
the abbreviation: the unit)is for the production of light length of the oxygen-free
copper rods, large length of bright oxygen-free copper tube and large length of
bright oxygen-free copper slab.
-
The unit melts electrolytic copper into liquid through an industrial frequency induction furnace, isolates it from the air by covering the surface with charcoal or injecting coal gas (to prevent oxidation of the copper liquid), and controls the temperature of the copper liquid at 1150℃+10℃ through a holding furnace. The continuous casting machine quickly forms copper bars in the bar casting device to continuously produce copper bars, which are finally loaded into discs through auxiliary equipment such as a single-head bar bending machine.
-
-
