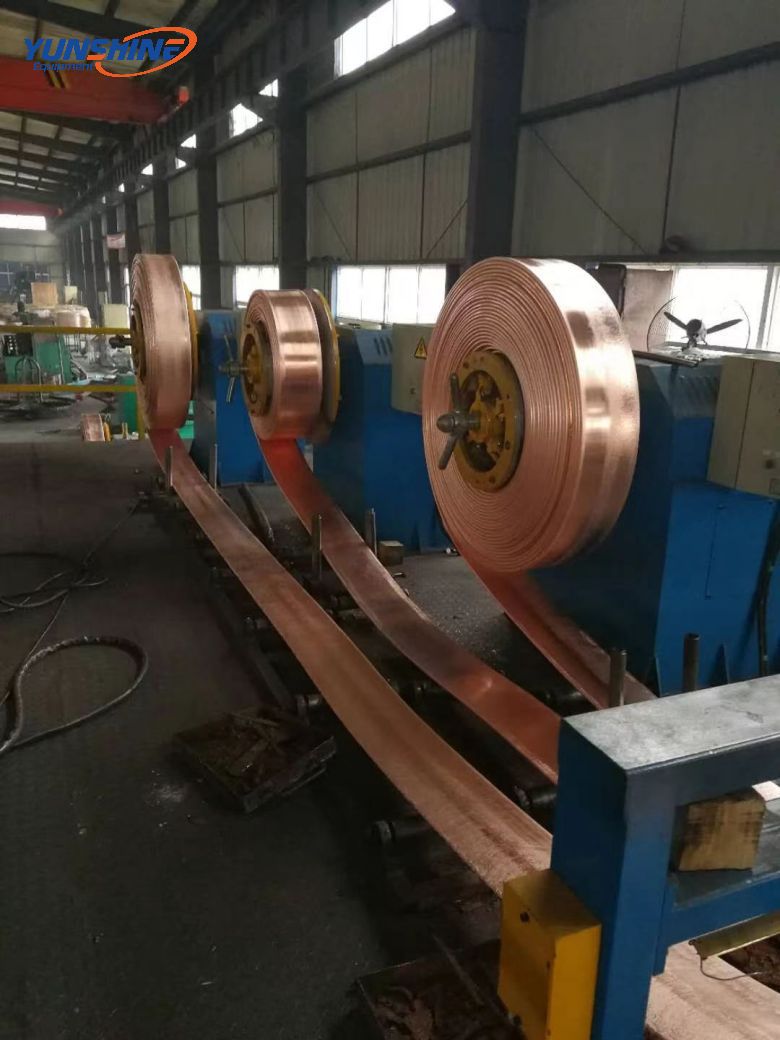

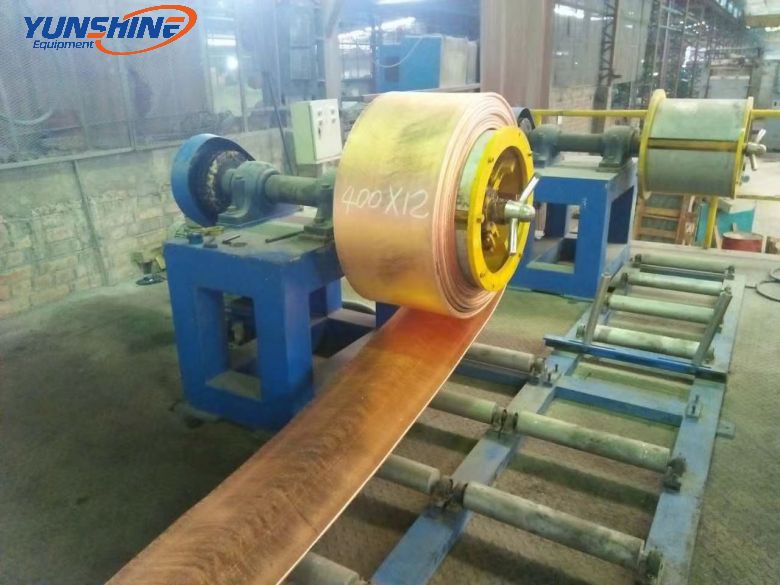

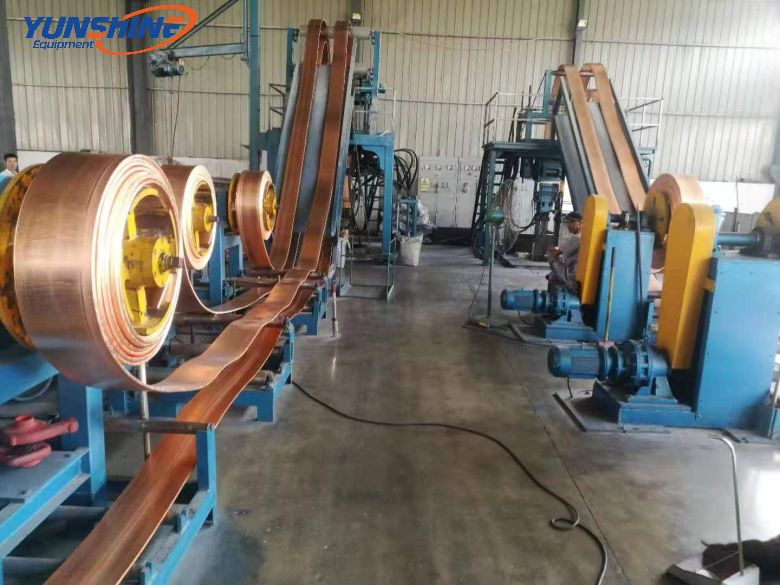

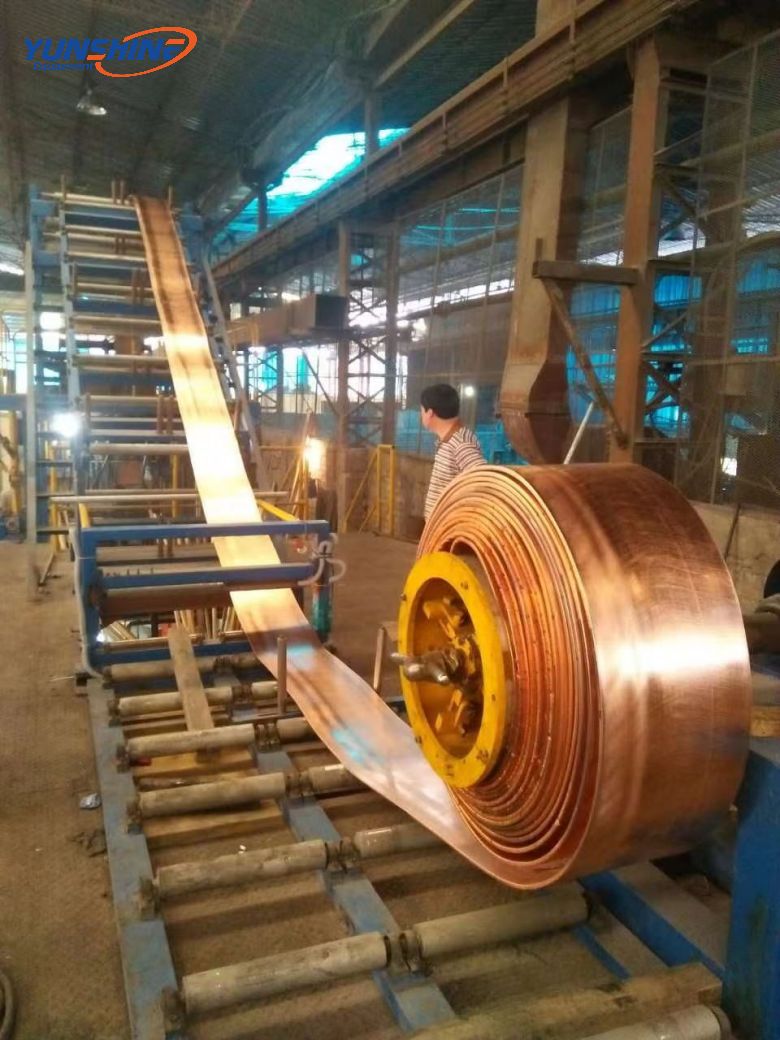

Upward Continuous Casting System for Oxygen-free Copper Busbar
Product Detail
Parameter
No. | Item | Parameter |
1 | Annual production capacity | 6000 tons |
2 | Furnace structure | Three-body combined furnace (2 melting furnaces, 1 holding furnace) |
3 | Number of casting rod heads | 6 pieces |

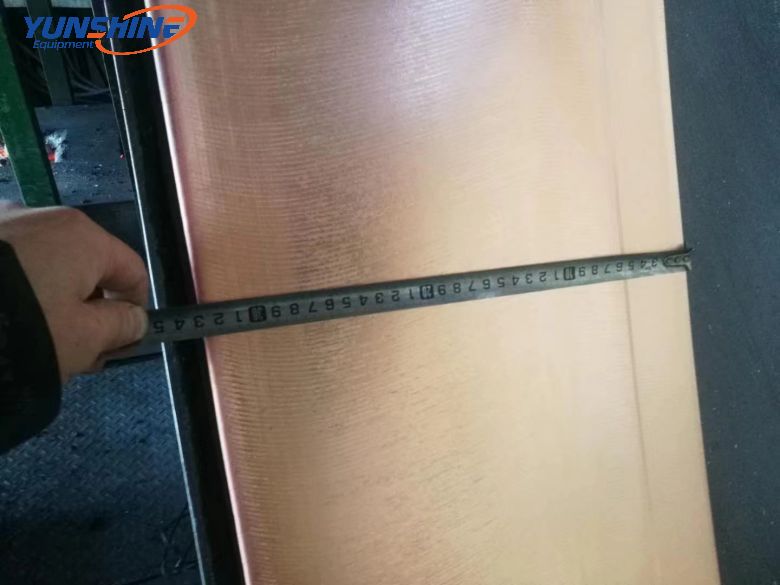

4 | Maximum specification of casting rod | W300mm *H10mm |
5 | Lifting speed | 300mm/min (servo system PC control |
6 | Annual working hours | 7900 hours |
7 | Liquid level tracking accuracy | ±2mm |
8 | Copper melting rate | 360kg/h |
9 | Copper melting power consumption rate | 340kwh/ton |
10 | Product type | Oxygen-free copper busbar, silver copper busbar, brass busbar. |
