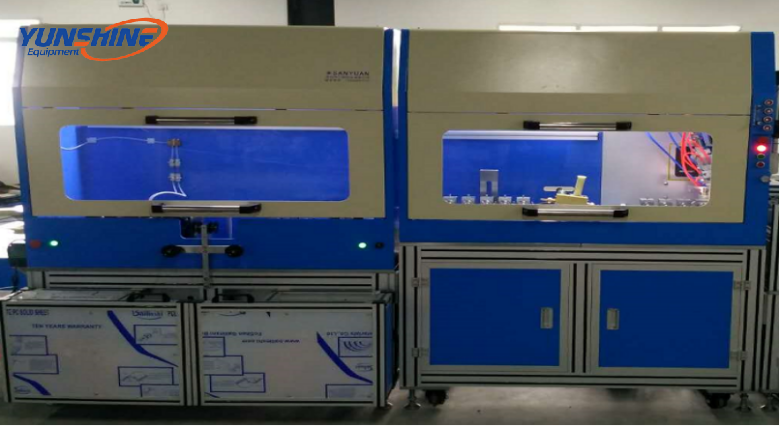

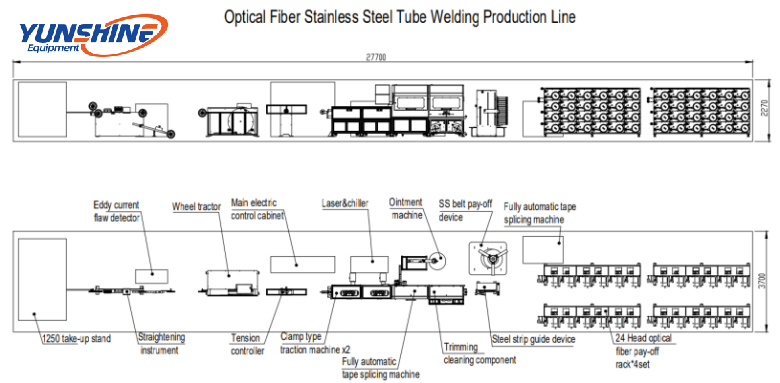

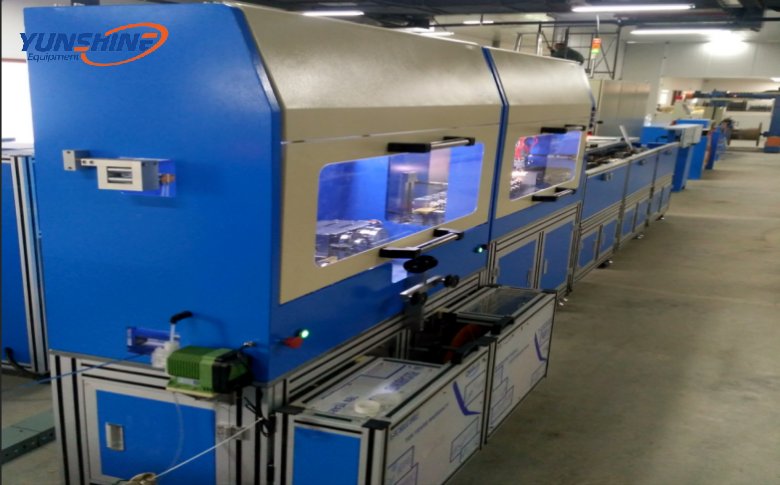

Optical Fiber Stainless Steel Tube Welding Machine For 48/72/96
Product Detail
Parameter
| Project | Parameter |
1 | Specification of stainless steel welded tube Standard configuration | Φ4.2mm Φ5.0mm |
2 | Outer diameter of end product SS tube welded tube Φ4.2mm: end product Φ2.4---Φ3.2 mm welded tube Φ5.0mm: end product Φ3.2---Φ4.2 mm | Φ2.4----Φ4.2 mm |

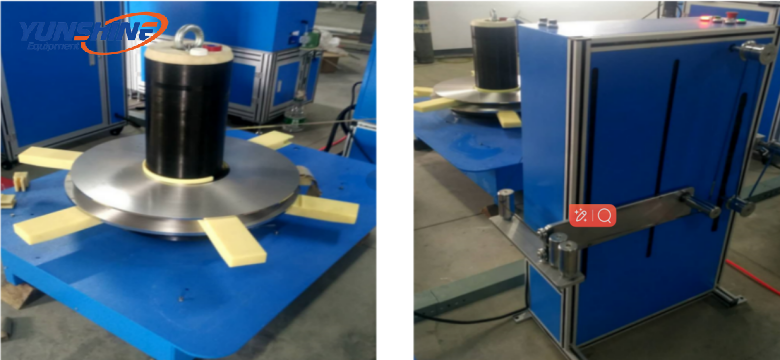

3 | Thickness of stainless steel belt | 0.2-0.3 mm |
4 | Max continuous end product length | 50 km |
5 | 0.2mm SS belt Max welding speed | 18 m/min |
6 | Normal process welding speed | ＞16 m/min |
7 | Production line structure speed | 3-40 m/min |
8 | Optical fiber cores number | 1-96 |
9 | Typical product speed | 10-18 m/min |

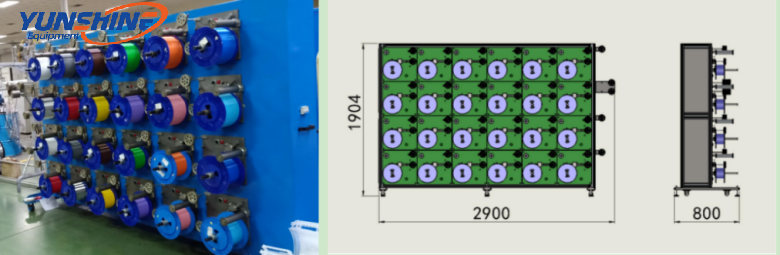

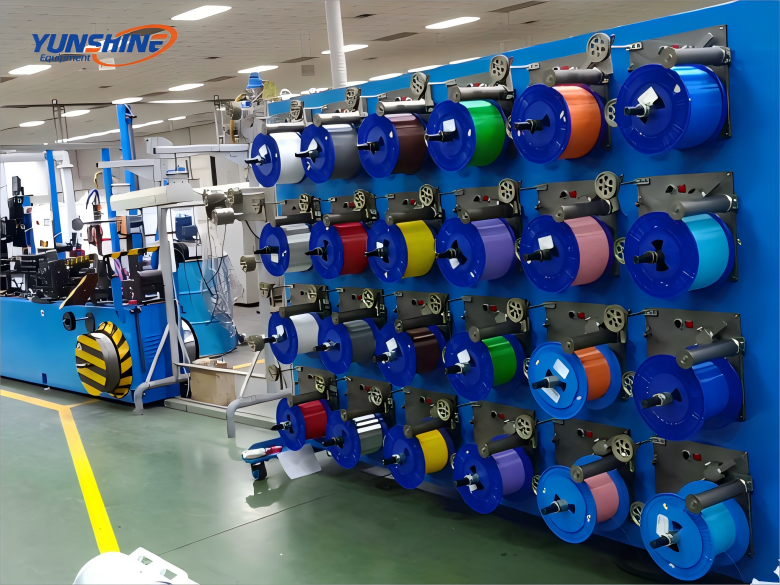

10 | Optical fiber paying off tension | 0.2～1.4N |
11 | Excess length range | 0.2%-0.68% |
12 | Accuracy of meter counter | +0-0.1% |
13 | Spool size | 400-1250mm |
14 | Production line central height | 1000 mm |
15 | Total power | ≈50 kW |
