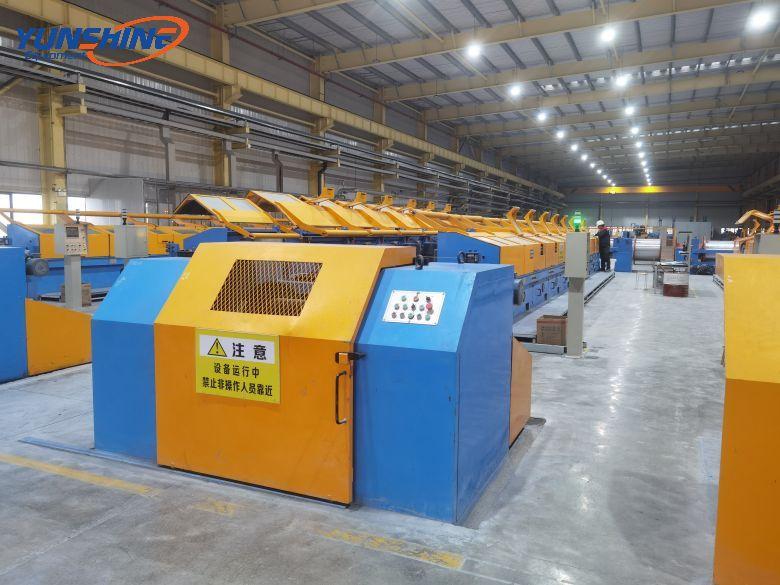

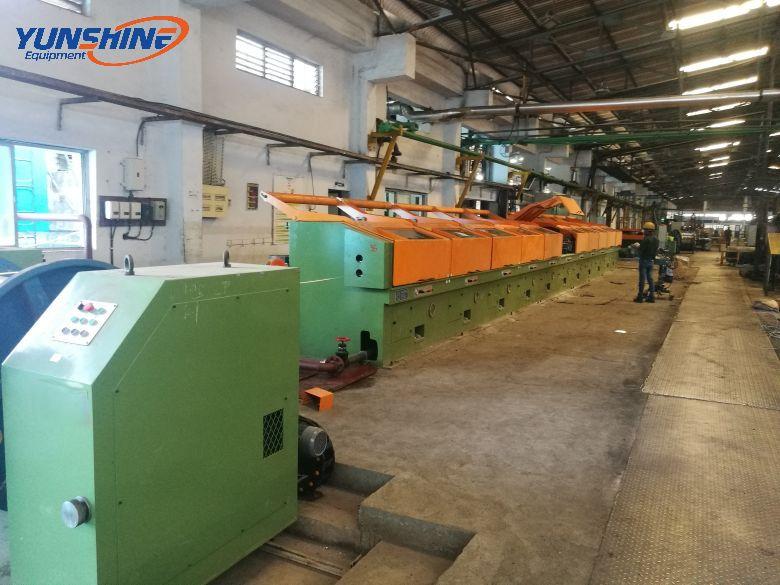

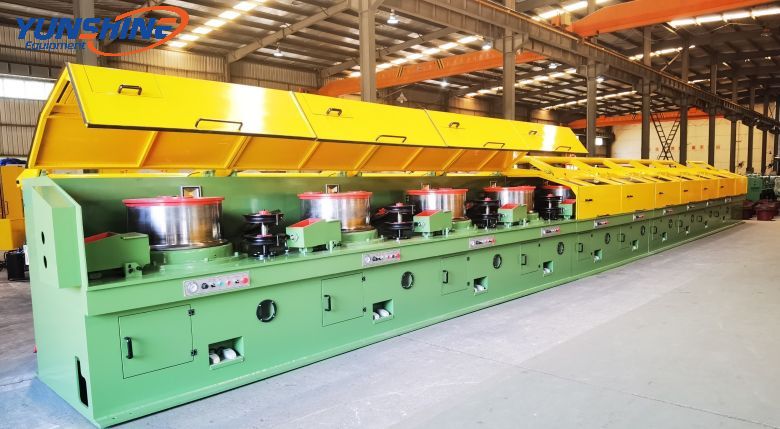

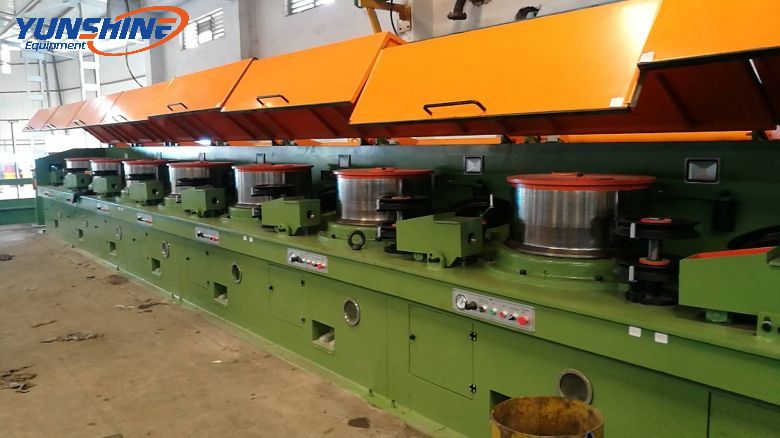

Aluminum Clad Steel Wire Drawing Machine
Product Detail
Parameter
No. | Name | Specification |
1 | Model | ACS10/700 |
2 | Drawing method | Dancer arm control |
3 | Number of dies | 10 |
4 | Diameter of drum （mm） | φ700 |

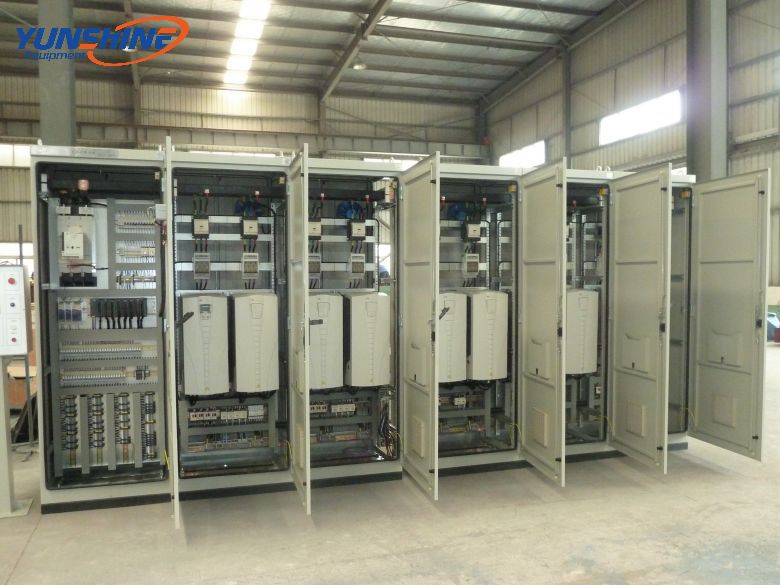

5 | Speed control method | Variable-Frequency Drive(VFD) |
6 | Motor powers for drawing （KW） | 55Kw(made in China) |
7 | Motor power of take-up(KW) | 37Kw(made in China) |
8 | Inlet wire dia.(max) | ≤φ8.0 |
9 | Diameter of product(min)(mm) | ≥φ1.6 |
10 | Average reduction rate (%) | Around 21% |
11 | Wire speed on last drum(m/s) | AS10:5-7 |
12 | Max.wire speed on No. 8 drum (no load) (m/s) | AS10:13 |
13 | Control way | Digital |
14 | Logic control | PLC |
15 | inlet wire strength (MPa) | ≤1250 |
16 | Cooling of drums and dies | Water for drums，Water for dies |
17 | Time span of machine stop (Second) | Normal≤30-40s,adjustable, quick≤15s; emerg.≤4s, the user can set and modify |
18 | Required cooling water | 0.2～0.3MPa/27-42m3/h |
19 | Required air supply | 0.5MPa/0.8-1.0m3/min |
20 | Pay off bobbin | Φ1400 |
21 | Take up bobbin | Φ1250 and φ1000 |
