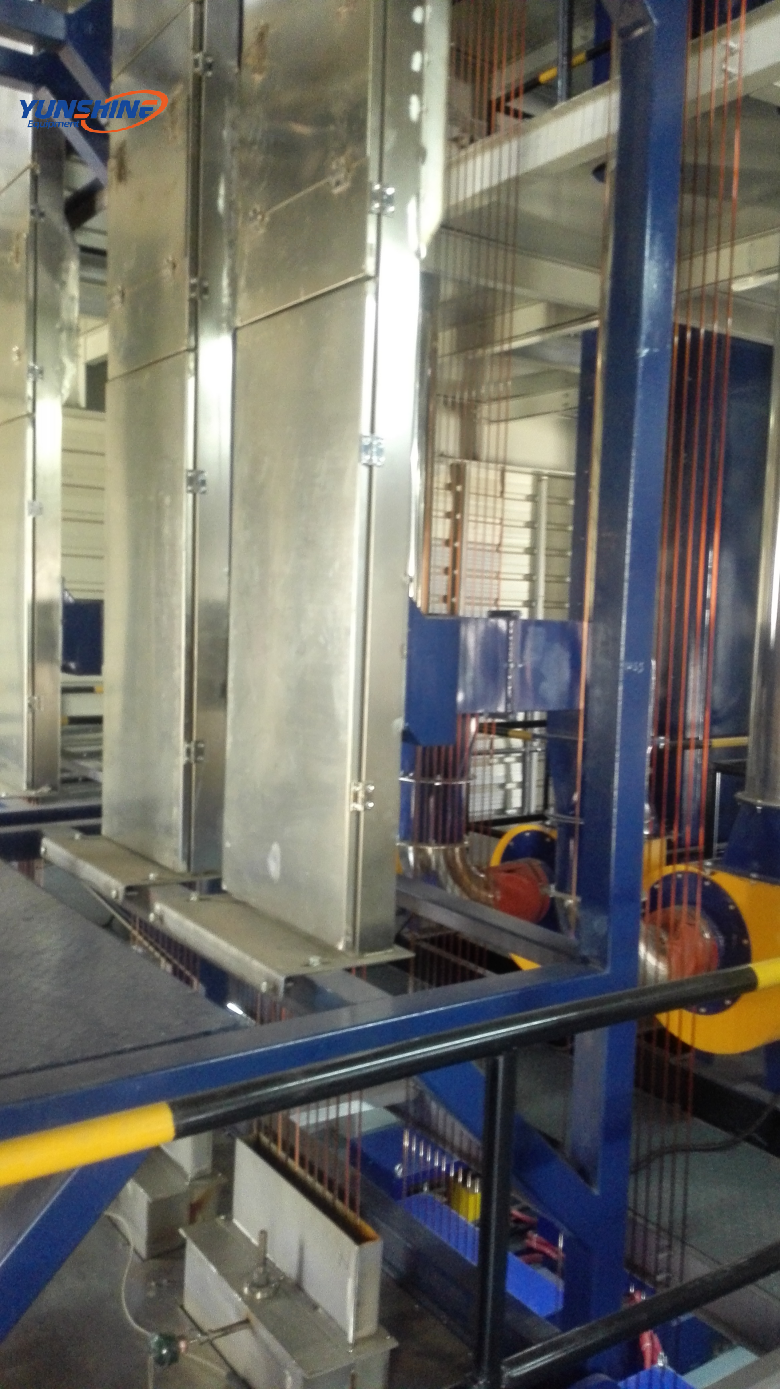

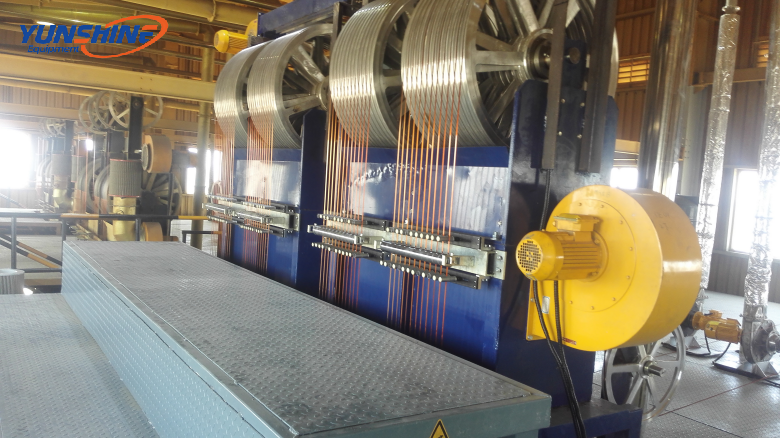

Middle Speed Enamelling Machine
Product Detail
Parameter
No. | Item | Data |
1 | Wire gauge 3-60mm2 | a side=1.0~4.5mm b side=3.0~14.0mm |
2 | Total lines | 6 |
3 | Mechanical line speed | Max18m/min |
4 | Wire pitch | 32 mm |
5 | Coating passes | 12 passes(PVF)+3 passes(EPOXY) |

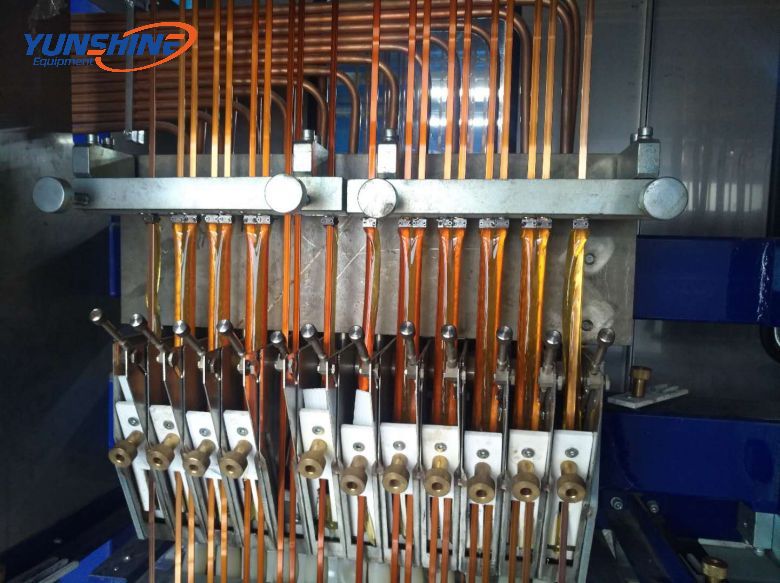

6 | Applicator | Mold painting |
7 | Take-up bobbin | PN560(The buyer provide bobbin size) |
8 | Pay-off bobbin | PN800(The buyer provide bobbin size) |
9 | Total installed power | 550KW+200KW(Self-bonding furnace) |
