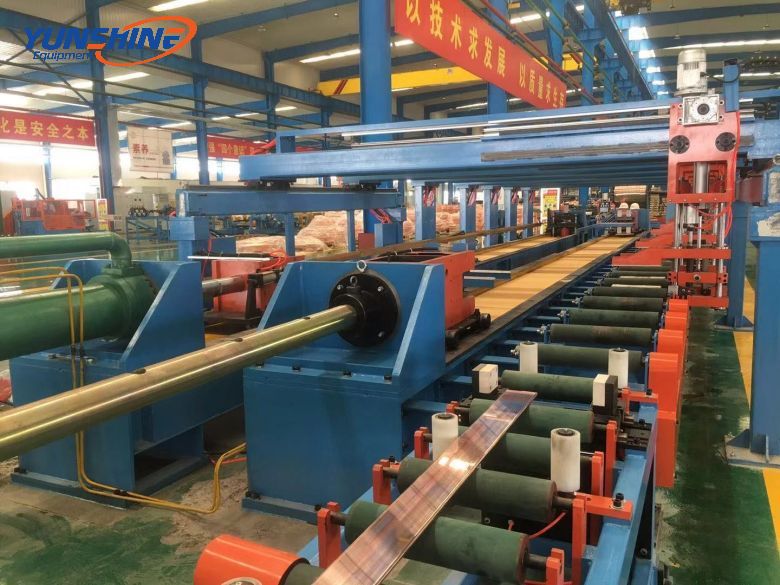

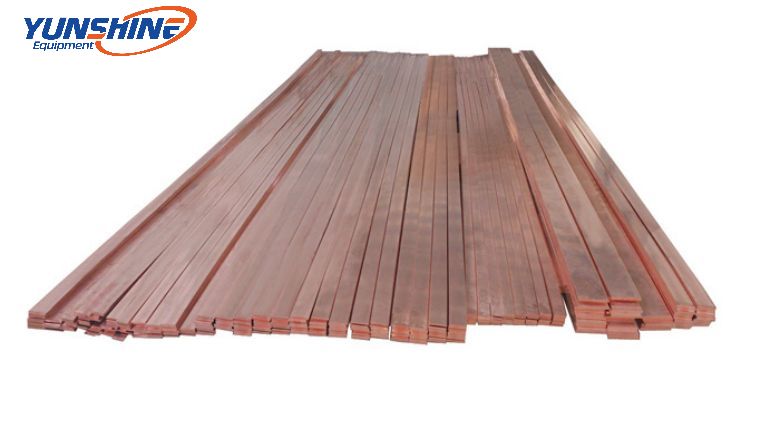

Hydraulic Drawing Machine for Copper Busbar 50T

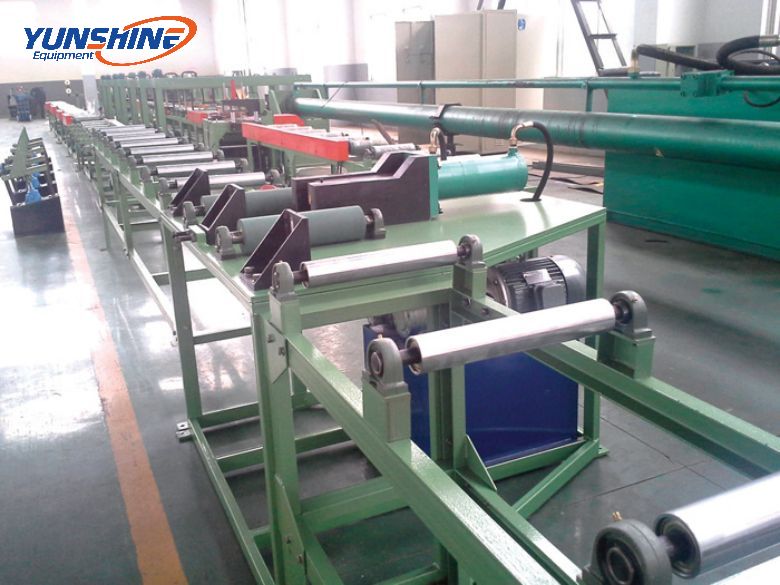

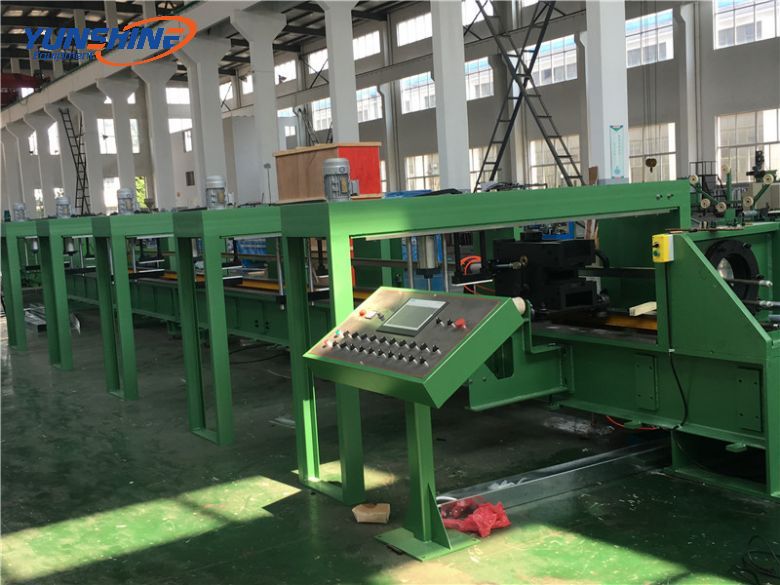

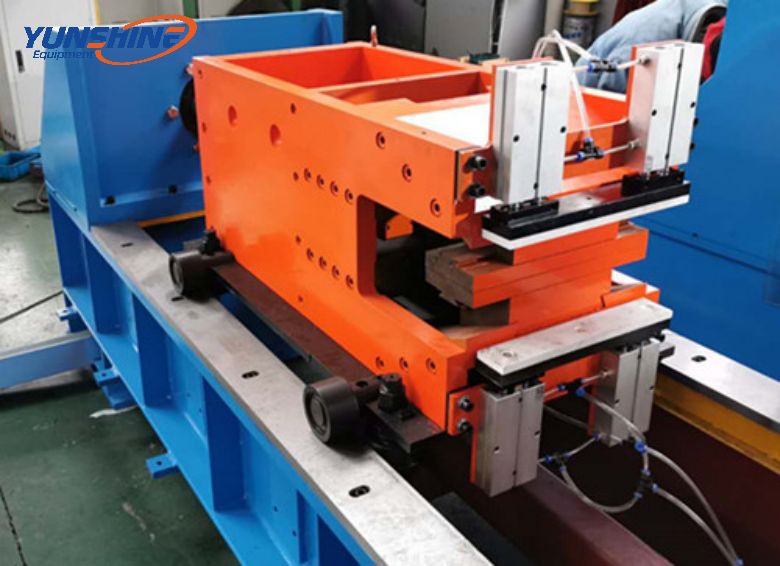

Product Detail
Parameter
No. | Item | Parameter |
12m machine | 10m machine | 8m machine | 6m machine |
1 | Nominal drawing force | 12M | 10M | 8M | 6M |
2 | Effective drawing length (m) | 12 | 10 | 8 | 6 |
3 | Profile specification (mm) Width/ Thickness | <170 / 3~30 |
4 | Drawing speed (m/min) | 1~10 |
5 | Return speed (m/min) | 10~48 |
6 | ID of the cylinder (min) | 220 |
7 | Diameter of the piston rod (min) | 125 |
8 | Stoke of the main oil cylinder (m) | 12.5 | 10.5 | 8.5T | 6.5 |
9 | Oil pressure from the hydraulic station (MPa) | 21 |
10 | Power supply | Three-phase four-wire system 380V/50Hz |
11 | Capacity (kW) | 90 | 88 | 75 | 75 |
12 | Cooling water (m3/h) | 10~30 |
13 | Compressed air (m3/h) | 1 |
14 | Equipment Size (m) Length | 35 | 32 | 30 | 28 |
Width | 4.5 |
Height | 2.2 |
15 | Weight of the equipment (t) | 30 | 29 | 25 | 23 |
16 | Space needed (m) | 40 | 36 | 29 | 23 |
